Low Power Soc (FPGA+RISCV)
14 Layer High Speed PCB for FPGA
14 Layer High Speed PCB for FPGA
Nano Quadcopter Version 2
2.4 GHz 6 channel RC Transmitter (NRF24L01) & PCB as Main Frame with main components such as Accelerometer,Gyro,Magnetometer,Barometer for Roll,Pitch and Yaw, Four n-MOS transistor for driving motor using PWM, 2.4 Ghz 6 Channel RC receiver, 4 micro motor,4 mini propeller and lipo battery.
Fabricated 14 Layer PCB for FPGA
Test Setup for FPGA's using Wiznet w5500 ethernet module
PL2303 USB to Serial Prototype Board
Software Design in Visual Studio
Nano Quadcopter Version 2
2.4 GHz 6 channel RC Receiver(NRF24L01) & PCB as Main Frame with main components such as Accelerometer,Gyro,Magnetometer,Barometer for Roll,Pitch and Yaw, Four n-MOS transistor for driving motor using PWM, 2.4 Ghz 6 Channel RC receiver, 4 micro motor,4 mini propeller and lipo battery.
Nano-Quadcopter Version1
Spartan 6 FPGA board Prototype
Custom MAX10 FPGA boards
32 MAX10 FPGA boards for IEEE workshop. Main components on board are PIC18F as JTAG Programmer, 10M02SCE144C8G FPGA, CH340G for usb to serial, 2 micro USB port, two 12MHz and on 50 Mhz Crystal oscillator, two seven segment display,two led's, two push button, 66 IO connectors,PMODE connetors and some discrete components such as resistors,Caps,Voltage regulator.
Microcontroller-Based Embedded Neural System for Computing Different Parameters of Microstrip Antennas
RBF and MLP Neural Network, Neural Network Matlab toolbox, Train the network using LM algorithm, Implement the neural network on AVR microcontroller using embedded C, Flash memory interfacing to store the floating point Weights and Bias, LCD Keypad interface, Microstrip antenna design using double sided PCB.
Compact DAQ (CDAQ) for scintillator
4 Layer PCB
Home Automation Prototype V1
IoT enable Low cost and compendious Home Automation System”
IoT enable using ESP8266 Wi-fi module, Electromagnetic Door Lock system with finger print sensor and RFID card, AC switching circuit using opto-isolator and Traic, Gas Sensor, Humidity Sensors, Light Sensors, Dust Sensor, Temperature sensor, Earthquake detector using MEMS sensor, Motion sensor, Complete circuit soldering on veroboard, GSM module for emergency SMS.

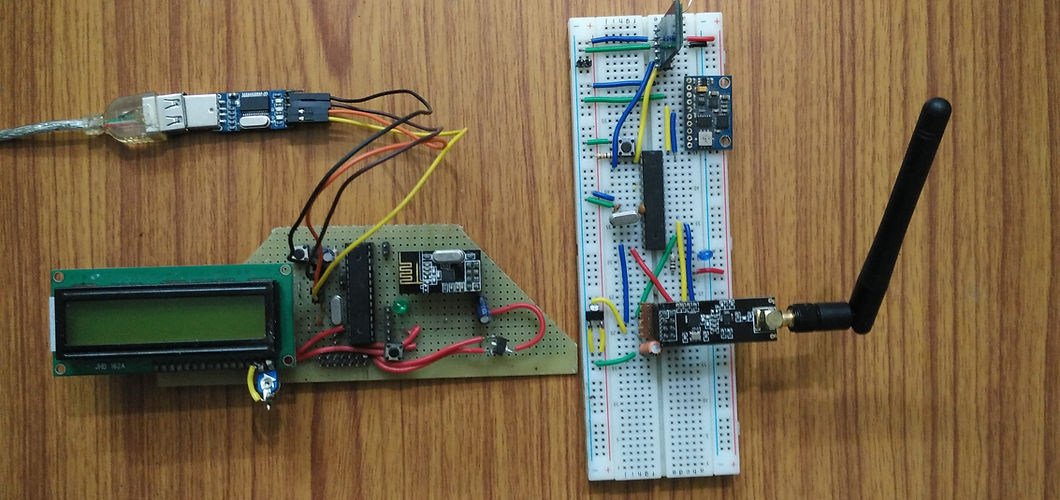

Wireless AHRS Data Transfer using nRF24L01 and HC-05
MAX10 FPGA Blank PCB's
mICAL
COSMIC MUON TRACKER

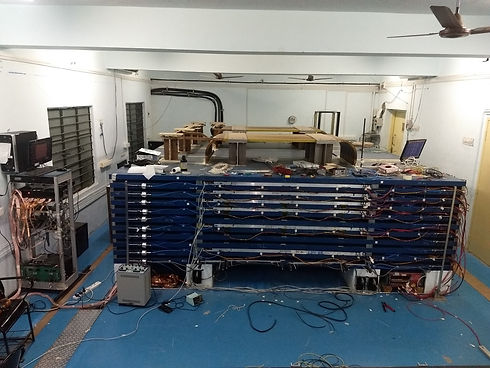

Stack of 12 Resistive Plate Chamber( RPC) capable of tracking muons
ASIC design of neuromorphic architecture
ASDQ 4 Layer Board
ASDQ 4 Layer Board for TPC
Chip description:
a) I/O Pads and frame: VDD Pads, GND Pads, Bidirectional Analog pads, Digital I/P Pads and Digital O/P Pads. b) ESD Protected. c) Chip consists of basic components directly connected to I/O's such as: pmos, nmos, adder, inverted, nand, resistor,capacitor, ring oscillator.
Custom Fully assambled MAX10 FPGA Boards
32 MAX10 FPGA'S
LVHV 3D Model
High voltage (5000V) and low voltage (5,3.3,7,-7) power supply
LVHV
High voltage (5000V) and low voltage (5,3.3,7,-7) power supply
LVHV 3D Model & Blank Pcb
High voltage (5000V) and low voltage (5,3.3,7,-7) power supply
Custom Small Form Factor DAQ for wearable Blood Pressure Device
Wearable Cuffless Non-invasive Blood Pulse Pressure waveform Device based on Radial Artery
Analog Force Sensitive Resistor (FSR) interfacing circuit design , Embedded System design using ARM Cortex-M4
microcontroller, PCB Design for data acquisition,Sensor Calibration using UTM and NI-6009 DAQ card through Artificial Neural Network, Digital Filters,
FFT, 3D printing using Ultimaker 2+, SD card Interfacing,
Wireless data transfer using HC-05 bluetooth module.
ARM BASED DATA ACQUISITION BOARD

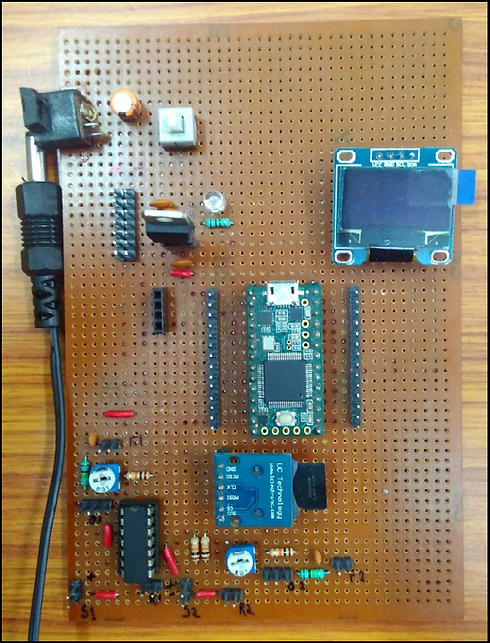

Analog Force Sensitive Resistor (FSR) interfacing circuit design , Embedded System design using ARM Cortex-M4
microcontroller, PCB Design for data acquisition, Software Development on Visual studio using C#, Algorithm Design, Digital Filters, FFT, 3D printing using Ultimaker 2+, SMD Components Soldering , SD card Interfacing, ECG and PPG circuits, Wireless data transfer using HC-05 bluetooth module.
DETECTOR
Resistive Plate Chamber(RPC) with Electronics
DETECTOR
Stack of Resistive Plate Chamber(RPC) with Electronics
Resistive Plate Chamber(RPC) with Electronics
Resistive Plate Chamber(RPC)
m-ICAL without RPC & Electronics
Setting up Nano-Quadcopter
PL2303 USB to Serial Board
Double Side PCB Fabrication using Feric Chloride
NEUTRINO DETECTOR
Techometer & Nano Quadcopter
RPM measurement
IoT enable Low cost and compendious Home Automation System
IoT enable using ESP8266 Wi-fi module, Electromagnetic Door Lock system with finger print sensor and RFID card,AC switching circuit using opto-isolator and Traic, Gas Sensor, Humidity Sensors, Light Sensors, Dust Sensor, Temperature sensor, Earthquake detector using MEMS sensor, Motion sensor,Complete circuit soldering on veroboard, GSM module for emergency SMS.
DOUBLE SIDED PCB PROTOTYPE
DOUBLE SIDED PCB PROTOTYPE
